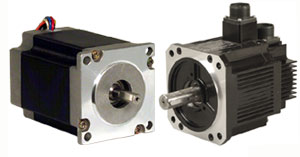

Differences Between Servo Motors and Stepper Motors

Many are under the misconception that there are vast differences between servo motors and stepper motors. Here, we attempt to dispel the notion and provide a more realistic view.

• 1. Torque

  A stepper motor has about the same torque as a comparably sized servo motor frame. A servo motor offers an additional time-dependent peak toque rating, a more flexible speed curve, and higher performance but a properly sized stepper motor could help you realize a better cost savings over a servo. It is important to note however, that stepper motors operate at full torque while the advantage of a servo motor is the ability to control torque in an application.

• 2. Applications

  If an application requires complete standstill stability, a stepper motor is the better choice. Servo motors, however, pulsate back and forth on standstill. Servo’s are the better choice in vertical applications in which the motor must hold a load still and for smooth operations while applications such as vision system positioning are better suit for a stepper motor.

• 3. Terminology

  ‘Servo’ is the term used of a motor applied on a closed-loop system. A stepper motor available optimized for the same application with identical functionality as a servo but at a reduced cost and a slower speed.

• 4. Micro-stepping

  Micro-stepping is the means of providing half-steps to a motor that offers fewer steps than desired. Micro stepping achieved by dividing the current between the two poles in the motor thereby increasing the resolution. However, micro-stepping can have an adverse effect on a stepper motor because it can reduce torque up to 30%.

• 5. Acceleration

  Stepper motors are not as flexible with torque as are servo motors. Stepper motors require much more power on acceleration that at any other time therefore torque requirements must lie within the nominal curve for the stepper motor. Peak torque for a servo motor must lie within peak torque curve and the Root Mean Square torque of the overall cycle.

• 6. Size

  Manufacturers of stepper motors and servo motors generally offer comparable frame sizes with the only difference in size being the length. Length allows different torques and inertia values to be obtain by the same size motor, offering greater performance without increasing the size of the motor or its cost. The result is a more cost effective solution that requires less installation space.

• 7. Speed

  Servo motors are known for speed however, servo’s are often used for applications in which the motor provides more RPMs than necessary. In such cases, belt drives, for instance, a stepper motor would fully suffice.

• 8. Power

  Whether it’s a stepper motor or a servo motor, the more current applied results in more torque. The advantage of a stepper motor in this regard is the amount of torque that available generated at a safe voltage.
