Horizontal Linear Style Pre-made Doypack Bag Pick-Fill-Seal Packaging Machine
A Horizontal Linear Style Pre-made Bag Pick-Fill-Seal Packaging Machine is a type of advanced automated packaging machinery. That is designed to handle all the tasks involved in packaging a product into a bag or pouch, from picking up the bag, filling it with the product, and sealing it securely. Usually used in a wide variety of industries like food, beverage, pharmaceuticals, and others.
It gets its name from its three main functions:

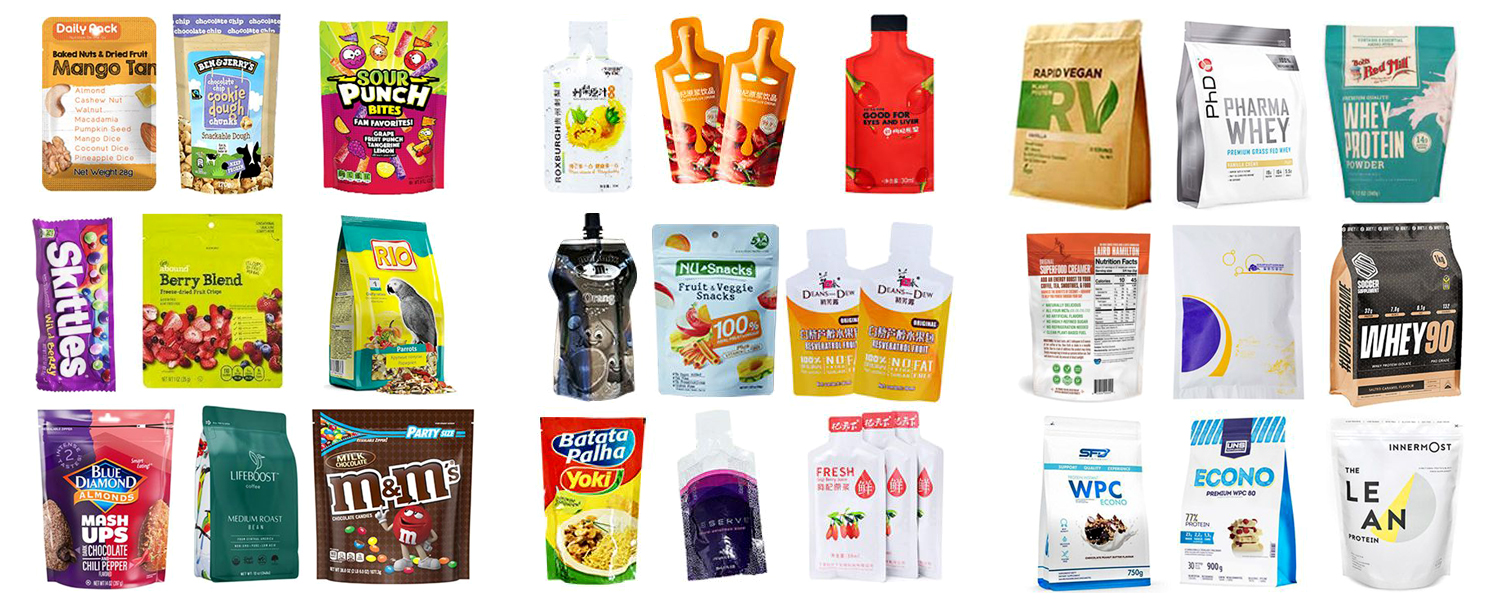

- Pick: The machine picks pre-made bags (in this case, Doypack bags, which are stand-up pouches with a sealed bottom) from a stack.
- Fill: The machine opens the picked bag and fills it with the product, which could be a solid, liquid, powder, or granulated substance.
- Seal: After the filling process, the machine then seals the bag to keep the product inside fresh and protected.
This type of machine operates in a horizontal, linear fashion – meaning that the bags move in a straight line as they are processed.
China's Reliable Packaging Machine Supplier
PFS dry powder packaging machine VTOPS-PFS-L140 Pro
Technical Parameters
1-set of Fill-station
| Models | PFS-L160 | PFS-L210 | PFS-L260 | PFS-L320 | |
|---|---|---|---|---|---|
| Brand | VTOPS | ||||
| Max. Pouch Width | 160mm | 210 mm | 260 mm | 320 mm | |
| Pouch Width | 60-160mm | 100-210mm | 120-260mm | 160-320mm | |
| Pouch Length | 100-250mm | 110-320mm | 110-360mm | 140-380mm | |
| Workstation | One set (pick pouch & fill pouch & seal pouch)[1] | ||||
| Speed | 10-50bags/min | 10-45bags/min | 10-40bags/min | 10-35bags/min | |
| Voltage | AC three-phase 380V | ||||
| Power | 2.0 Kw | 2.5 Kw | 4.5 Kw | 4.5 Kw | |
| Capacity[2] | 10g-500g | 200g-2kg | 200g-2kg | 200g-3kg | |
| Air consumption | 0.7m3/min | ||||
| Total Weight | 900 Kgs | 1000 Kgs | 1200 Kgs | 1500 Kgs | |
| Dimensions | 175*130*136 cm | 215*135*150cm | 245*140*150cm | 330*180*150cm | |
| Warranty Period | 2 years | ||||
| Manufacturer | Zhengzhou Vtops Machinery Co. Ltd. | ||||
| Add-on | ① Ribbon Coding; ② Zipper Pouch; ③ 2nd Sealing. | ||||
[1]:Workflow Chat of VTOPS-PFS-L160 pick fill seal packing machine:
[2]: Capacity refers to the weight of the material filling in the pre-made pouch. It is a guideline value as it depends on the size and density of the materials.
[3]: All the above parameters are the parameters of the host of pick-fill-seal packing machine, not including the metering and dosing device.
2-set of Fill-station
The 2-set of fill-station means the doypack pouch packing machine including double set of pick-fill-seal packing station. According to the width of the pouch bag, we have divided it into four different models, and the parameters are the following:
| Models | PFS-L110 Pro | PFS-L140 Pro | PFS-L180 Pro |
|---|---|---|---|
| Brand | VTOPS | ||
| Max. Pouch Width | 110mm | 140mm | 180mm |
| Pouch Width | 70-110mm | 90-140mm | 110-180mm |
| Pouch Length | 100-230mm | 100-250mm | 100-270mm |
| Workstation | Double set (pick pouch & fill pouch & seal pouch)[2] | ||
| Speed | 30-90 bags/min | 30-80 bags/min | 30-70 bags/min |
| Voltage | AC three-phase 380V | ||
| Power | 5KW | 5KW | 5KW |
| Capacity[1] | 10g-200g | 10g-400g | 10g-500g |
| Air consumption | 0.7m3/min | 0.7m3/min | 0.7m3/min |
| Weight | 1800 Kgs | 2000 Kgs | 2200 Kgs |
| Dimensions | 256*145*155 cm | 276*155*135 cm | 296*155*155 cm |
| Warranty Period | 2 years | ||
| Manufacturer | Zhengzhou Vtops Machinery Co. Ltd. | ||
| Add-on | ① Ribbon Coding; ② Zipper Pouch; ③ 2nd Sealing. | [1]: Capacity refers to the weight of the material filling in the pre-made pouch. It is a guideline value as it depends on the size and density of the materials. [2]: All the above parameters are the parameters of the host of pick-fill-seal packing machine, not including the metering and dosing device. |
|
Video Gallery
Add-on Optional Equipments
People Also Ask
What is PFS packing machine?
The PFS represents the 3 actions of pick fill seal packing machine: Pick-up, Filling and Sealing.
The PFS packaging machine has two design styles:
What is an automatic doypack bag packaging machine?
What is the advantages of doypack bag packaging machine?
- Support pouch bag width from 60 mm up to 350 mm.
- Supports a maximum speed of 120 bags per minute (The bag width and model is different, please refer to the technical data list or download VTOPS Catalog).
Why choose VTOPS?
- More than 20 years of experience in packaging machine manufacturing;
- 1 to 1 after-sales service group;
- 2 years warranty;
