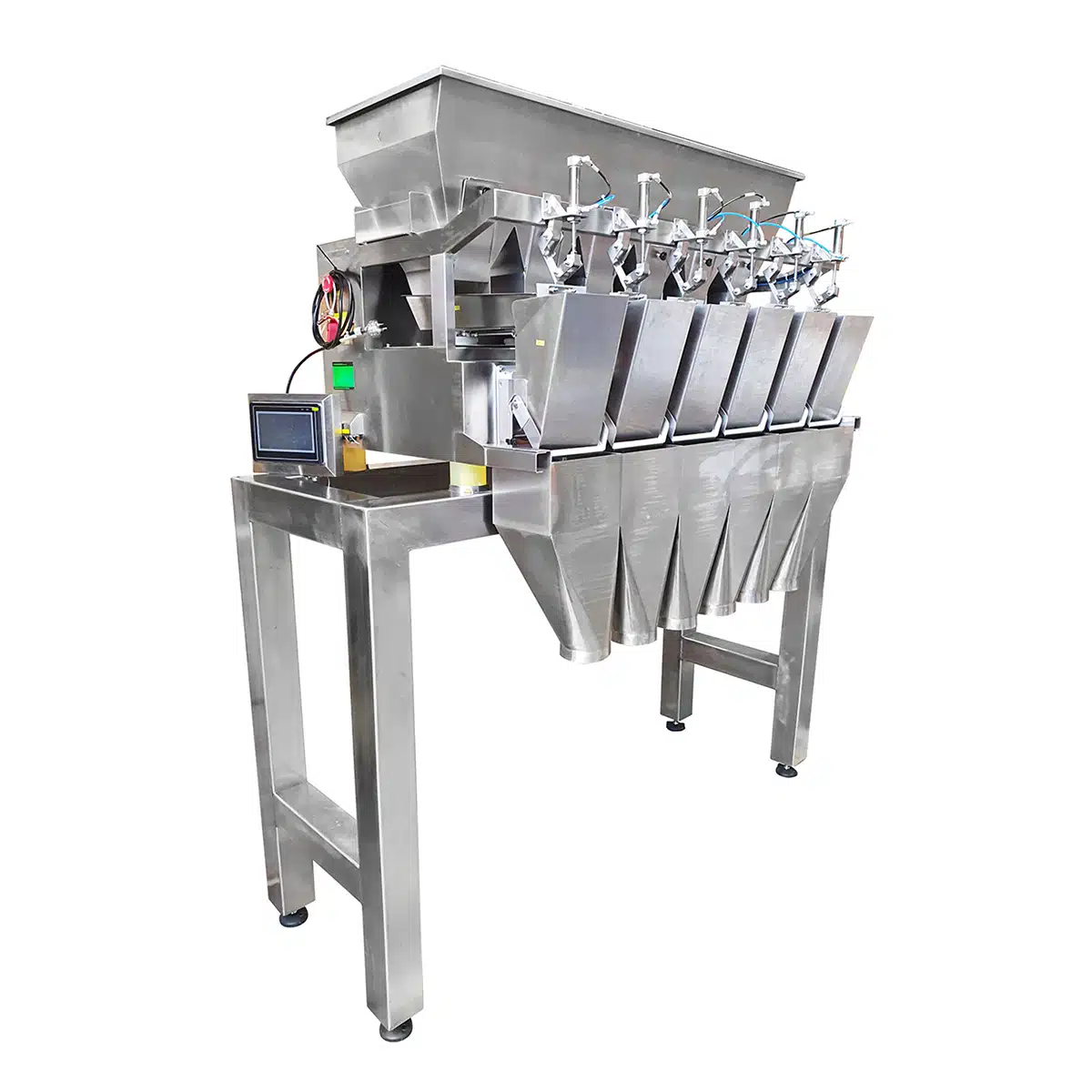

Brand new VTOPS-6DC 6 Head Linear Vibratory Weigh Filler with Stand
A 6 head linear vibratory weigh filler is a type of packaging machinery used to measure and dispense precise amounts of product, typically small to medium-sized items like snacks, grains, nuts, or other similar products. The machine uses vibratory feeding to move the product into a weighing hopper, which ensures accurate portion control.
The 6-head linear vibratory weigh filler has significant advantages over the 4-head linear scale in terms of speed and combination options, making it suitable for medium-scale production needs. However, compared to multi-head weighers (such as 10-head or 14-head), it has a larger volume, fewer combination options, and lower flexibility. Therefore, when choosing equipment, it is important to consider factors such as production scale, product variety, space constraints, and budget to select the most suitable weighing and filling equipment.
Key Featuress:
- Increased Speed: The 6-head linear vibratory weigh filler offers enhanced speed due to additional weighing heads.
- Simultaneous Operation: Multiple weighing hoppers operate simultaneously, increasing production efficiency.
- Flexible Combination Options: This machine can handle various weight distributions for precise portion control.
- High Precision: The filler is equipped with accurate sensors for precise weighing.
- Intelligent Control: Real-time monitoring and adjustments are made through an advanced control system.
- User-Friendly Control System: The control panel is simple and intuitive for quick setup and adjustment.
- Durable Construction: Made from stainless steel and other robust materials, suitable for hygienic industries.
- Easy to Clean: Modular design allows for easy disassembly and cleaning.
- Large Volume: The machine’s larger size requires more installation and operational space.
- Cost-Effective: Lower initial investment compared to multi-head scales.
Technical Parameters:
| Model | 2DC-2K | 4DC-2K PPopular! | 6DC-2K | 2DC-6K | 4DC-6K |
|---|---|---|---|---|---|
| Brand | VTOPS | VTOPS | VTOPS | VTOPS | VTOPS |
| Metering Range | 30-2000 g | 30-2000 g | 30-2000 g | 500-6000 g | 500-6000 g |
| Filled Error | ≤ ±0.3% | ≤ ±0.3% | ≤ ±0.3% | ≤ ±0.3% | ≤ ±0.3% |
| Weighing Hoppers | 2 | 4 | 6 | 2 | 4 |
| Weighing Speed | 0-30 fills/min | 0-50 fills/min | 0-70 fills/min | 0-30 fills/min | 0-60 fills/min |
| Feeding Method | Vibrator Fillers | Vibrator Fillers | Vibrator Fillers | Vibrator Fillers | Vibrator Fillers |
| Filling Method | One-by-one [2] | One-by-one [2] | One-by-one [2] | One-by-one [2] | One-by-one [2] |
| Hopper Volume | 4.5 Liters | 3 Liters | 3 Liters | 25 Liters | 25 Liters |
| Silo Volume | 100 Liters | 100 Liters | 100 Liters | 150 Liters | 180 Liters |
| Ground Clearance | 650 mm | 780 mm | Customizable | 850 mm | 850 mm |
| Voltage | AC Single-phase 220V[1] | ||||
| Power | 0.5 Kw | 0.5 Kw | 0.7 Kw | 0.5 Kw | 0.5 Kw |
| Dimensions | 108×95×192 cm | 131×107×242 cm | 161×107×242 cm | 113×110×227 cm | 150×110×250 cm | [1]: AC Single-phase 220V: voltage can be customized. [2]: One-by-one: One-by-one unloading of the weighing hoppers, the weight of each unloading is the set weight. Re-Note: The weighing hopper of the VTOPS linear vibration weigher can be customized with multiple weighing hoppers to discharge materials at the same time. Then the weight of the discharged material will be a multiple of the set weight (the number of weighing hoppers). |
