Model: VTOPS-L962 Category: Tag:
Description

Automatic Round/Square/Flat Bottle Plastic Bottle Front and Back Single/Double Side Sticker Labeling Machine

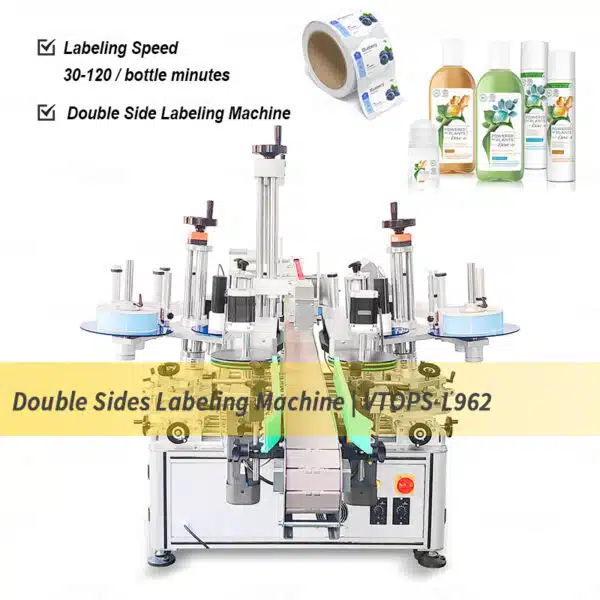

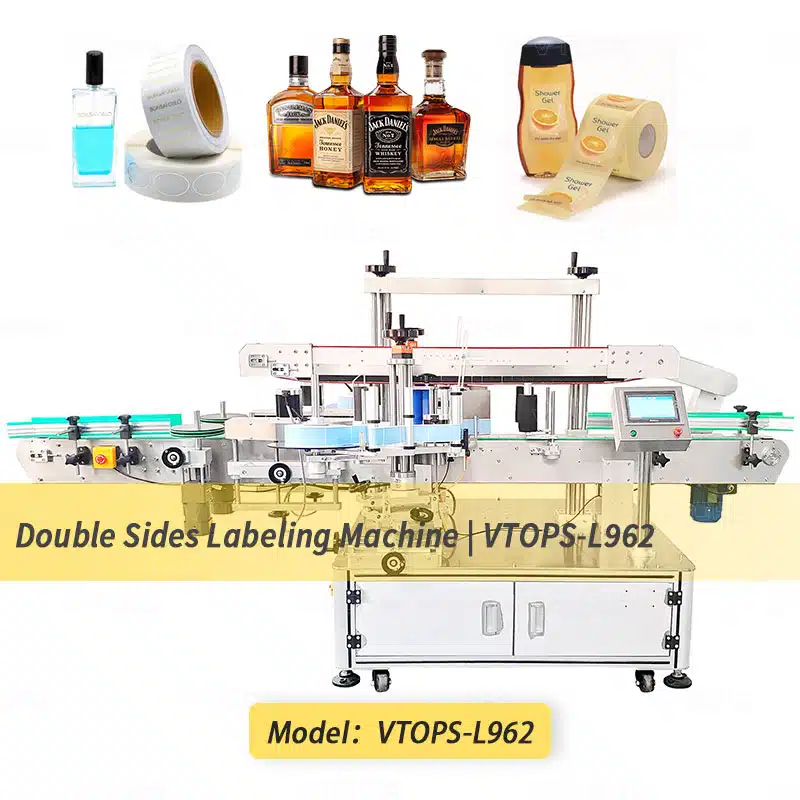

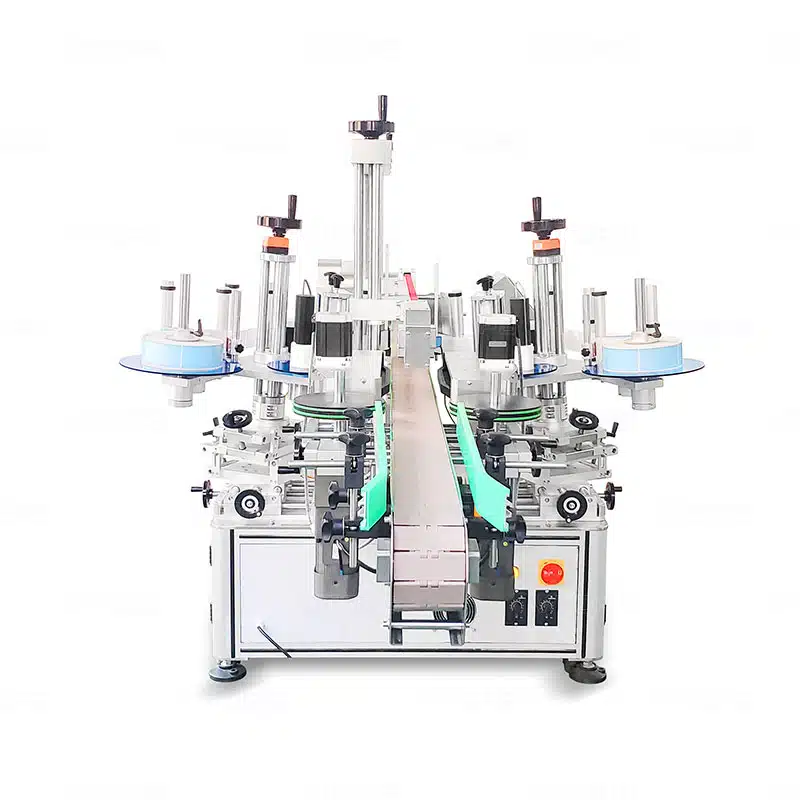

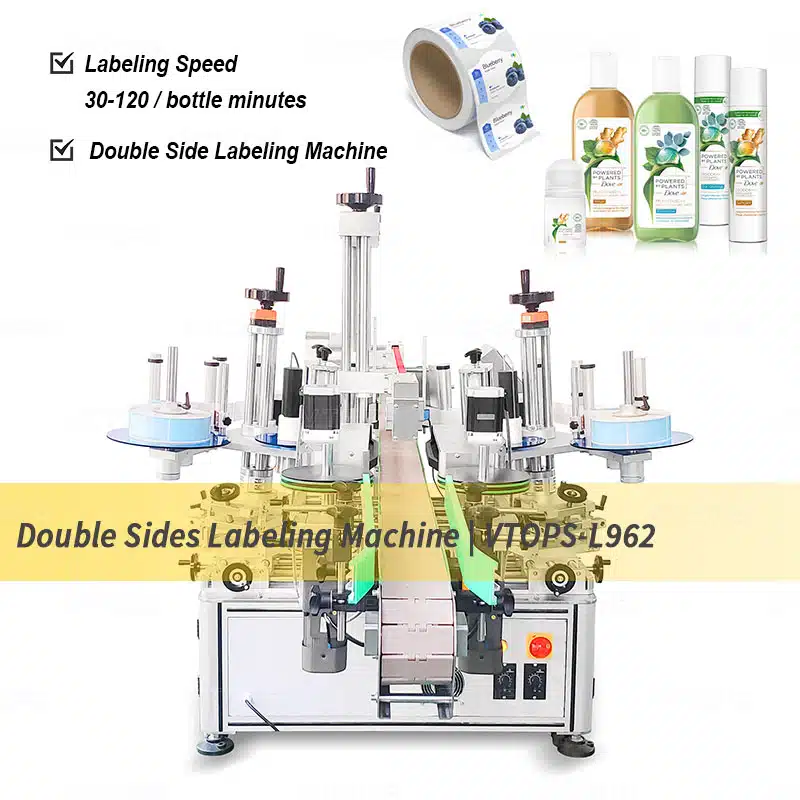

The VTOPS-L962 Fully Automatic Double Side Labeling Machine is designed for high-speed, precise, and consistent labeling on both single and double sides of bottles with different shapes, including round, flat, and square bottles. This machine is ideal for various industries, including cosmetics, personal care, pharmaceuticals, food & beverage, chemicals, and household products.
By applying two labels simultaneously, the VTOPS-L962 enhances production efficiency, reduces manual labor, and ensures uniform label placement. Whether for plastic, glass, or metal containers, this labeling machine offers seamless integration into existing production lines.

1. Application:

  • Personal Care & Cosmetics – Shampoo, conditioner, lotion, and skincare bottles.
  • Food & Beverage – Juice, sauce, and condiment bottles.
  • Pharmaceutical & Healthcare – Hand sanitizer, medicine, and supplement bottles.
  • Chemical & Industrial – Lubricant, cleaning solution, and disinfectant bottles.

2. Features:

    • Versatile Labeling – Supports single-side and double-side labeling for a variety of bottle shapes and materials.
    • High Efficiency – Dual-label application in a single pass significantly increases production output.

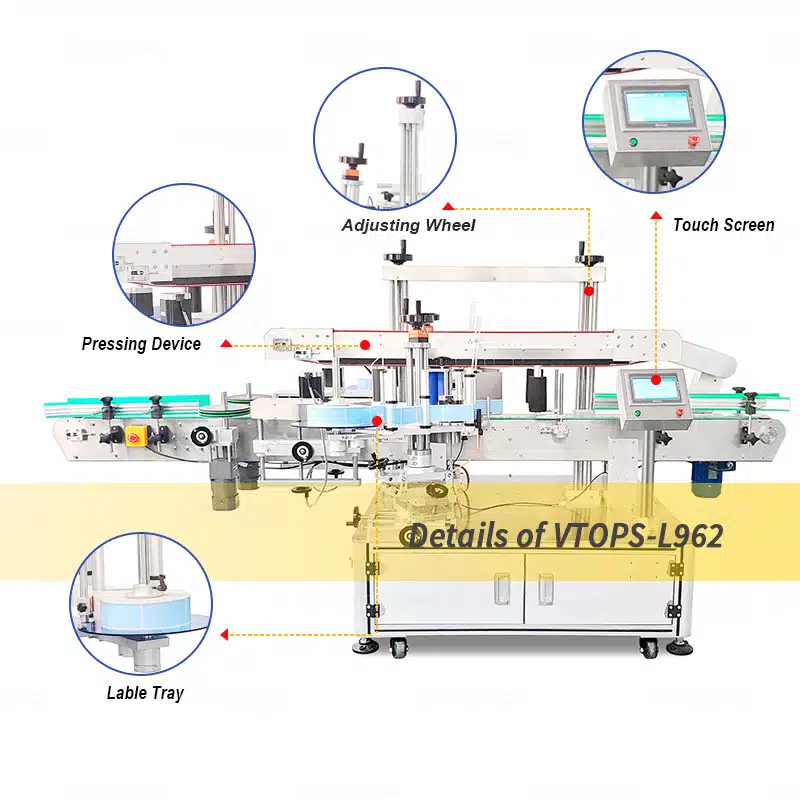

    • Precision & Accuracy – Equipped with advanced sensors for precise positioning, preventing bubbles and misalignment.
    • User-Friendly Operation – Features a smart touchscreen control panel for simple operation and quick adjustments.
    • Adjustable Conveyor & Labeling Heads – Flexible design accommodates different bottle sizes, label positions, and production needs.
    • Customizable Features – Can be integrated with coding printers, batch number systems, or barcoding solutions for enhanced functionality.

3. Technical Parameters:

Item VTOPS-L962
Labeling Speed 0-120 bottles/min (depending on product and label size)
Applicable Product Dimensions Length (conveying direction): 20mm-250mm; Width (conveying width direction): 30mm-90mm; Height: 60mm-280mm
Applicable Label Size Length: 20mm-300mm; Bottom paper width: 25mm~175mm

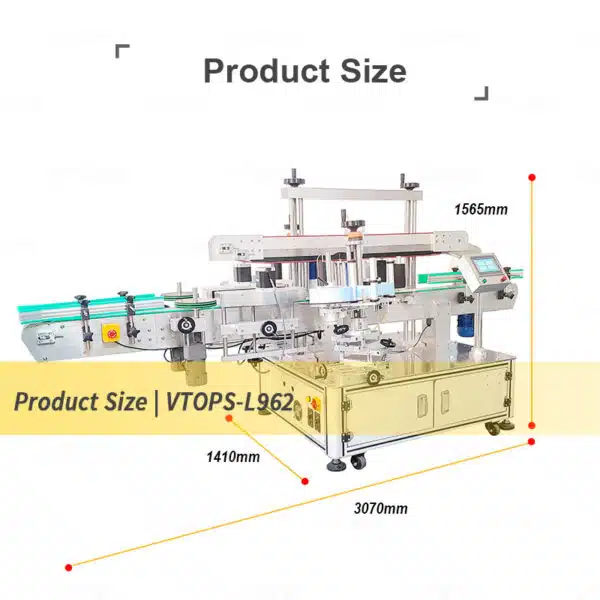

Machine Dimensions 3070mm*1410mm*1565mm
Applicable Power Supply 220V 50/60HZ
Weight 473KG

4. Video Gallery

Flat Oval Glass Wine Bottle Full-circle Labeling Machine VTOPS-L962
250ml Conical Glass Bottle Automatic Full-Circle labeling Machine VTOPS-L961
