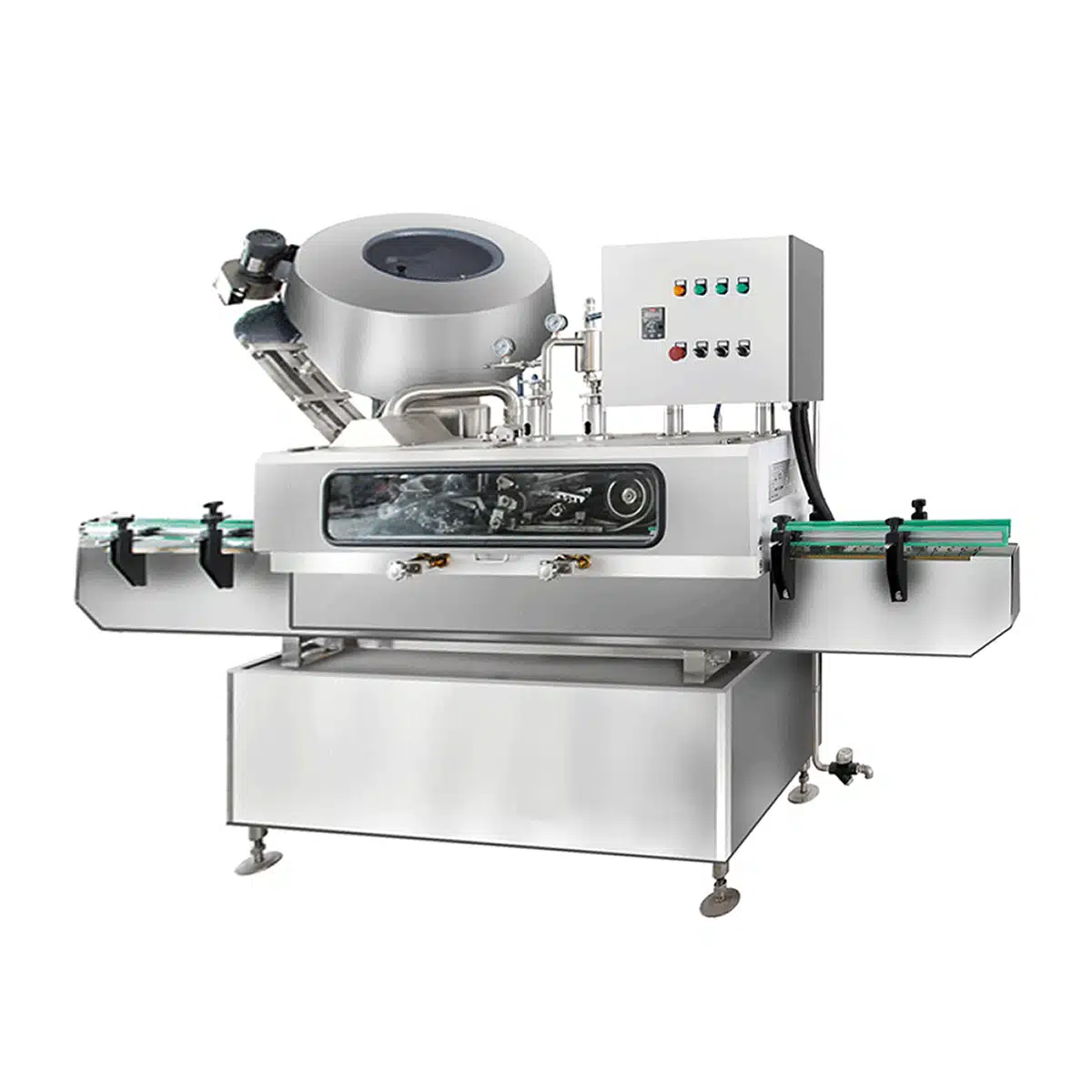

Automatic Glass Bottles Fruit Jam Jar Metal Twist-off Caps Vacuum Steam Capper Machine For Hot Sauce

The Metal Twist-off Caps Vacuum Steam Capper Machine offers a seamless packaging solution, combining efficiency, safety, and versatility. Equipped with a PLC touch screen control panel, it ensures intuitive operation while maintaining safety with its emergency stop button. Designed to streamline the capping process, this machine is ideal for requiring steam sterilization when sealing of glass bottles and containers for hot sauce fruit jam jar.

Key Features:

1. PLC Touch Screen Control Panel:
   Initially, the PLC and touch screen control panel enhances user interaction, making it easier to monitor and control the operations of the capping machine.
2. Emergency Stop Button:
   Equipped with an emergency stop button, this capping machine offers increased safety, allowing for immediate shutdown to protect both the operator and the equipment.
3. Electric Rotation Cover Sorting Method:
   The adoption of an electric rotation cover sorting method reduces noise and ensures smoother cap sorting, which improves the working environment and operational efficiency.
4. Automated Cap Feeding with Electric Eye:
   Featuring an electric eye that detects metal twist-off caps, this machine automates cap feeding, reducing manual labor and increasing production speed.
5. Adjustable Guide Rail:
   The guide rail can be adjusted to accommodate different cap sizes without the need for additional components, making the machine more versatile and easier to use.
6. Steam Injection Pre-Sealing Process:
   Importantly, the machine enhances sealing quality by injecting steam before sealing to displace air at the top of the bottle, improving the final product’s shelf life.
7. Two Flat Belts for Sealing:
   This feature ensures a secure and consistent seal by using two flat belts to tighten the cap, leading to reliable packaging outcomes.
8. Integration with a Steam Generator:
   Additionally, by integrating with a steam generator (sold separately), the capping machine uses steam-assisted sealing. This enhances the sealing process’s effectiveness, ideal for preserving packaged product quality.

Technical Parameters

Model: VTOPS-C-V4S
Power supply: 220V/380V 3.12KW
Working capacity: About 4000BPH
Suitable cap size: Customized
Suitable bottle size: Customized
Steam consumption: 180-230kg/h
Steam pressure: ≤0.4MPa
Maximum vacuum degree: 34-67KPa
Machine size: About 3250*1050*2010mm
Machine weight: About 500kg
