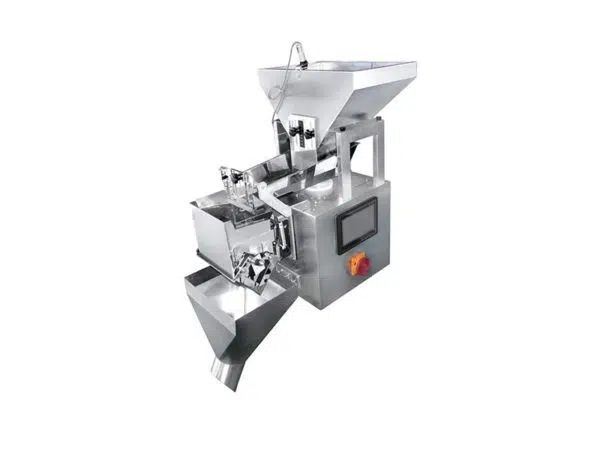

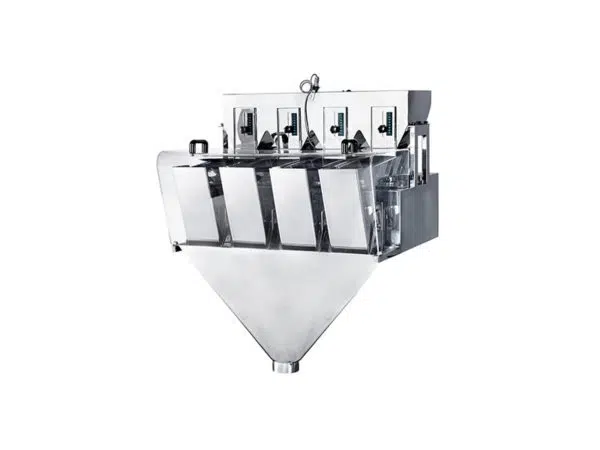

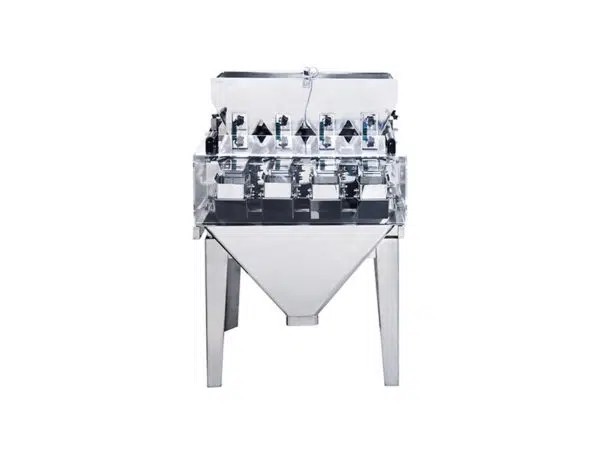

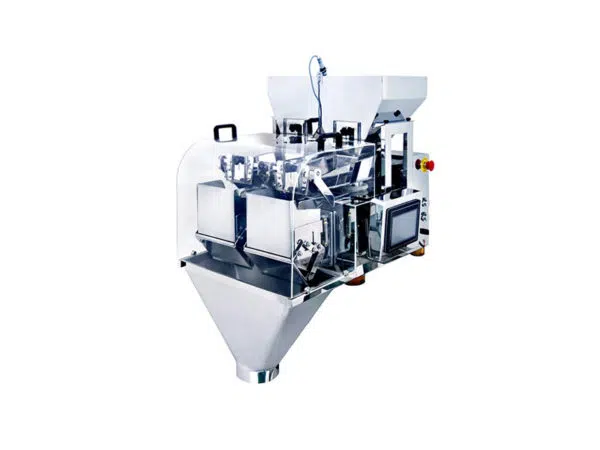

The linear weigher series of VTOPS-JW is suitable for dosing and weighing small granular products with a uniform size. Such as: sugar, salt, seeds, rice, sesame seed, monosodium glutamate, chicken powder, milk powder, coffee powder, seasoning powder and much more.
Features:
- 1. Highly-integrated modular control system.
- 2. Mechanical amplitude and relevant parameters are adjustable.
- 3. The weigher is applicable to weighing a wide array of materials at the same time.
- 4. Allowing for mixed material packaging.
- 5. Real-time control on material flow to ensure an accurate weighing.
Technical Parameter:
| Model | AX1-4.5 | AX1-15 | AX2-4.5 | AX2-15 | AX4-0.5 | AX4-3 |
|---|---|---|---|---|---|---|
| Series | VTOPS-JW | |||||
| Dosing Range [1] | 20- 1000 g | 0.5~12 Kg | 50~3000 g | 1-12 Kg | 5-300 g | 50-2000 g |
| Accuracy | X(1) | |||||
| Speed [2] | 10 p/m | 8 p/m | 30 p/m | 50 p/m | 50 p/m | 60 p/m |
| Weighing Hoppers | 1 | 2 | 4 | |||
| Hopper Volume | 4.5 L | 15 L | 4.5 L | 15 L | 0.5 L | 3 L |
| Silo Volume | 20 L | 60 L | 35 L | 60 L | 20 L | 40 L |
| Power | 0.7 Kw | 1.2 Kw | ||||
| Power supply | AC Single-Phase 220V 50/60Hz | |||||
| LxWxH cm | 70x60x95 | 115x70x109 | 92×80×89 | 121×116×102 | 82×80×70 | 140x120x110 |
[1]: Single weighing hopper dosing range.
[2]: Maximum weighing speed.
Related products
Reviews
Semi Automatic Linear Weigher Series Machine | VTOPS-JW
Follow Us
“There is no best, only better” are not just words to us but a way of life. We are able to better meet and exceed your diverse product needs by providing designs that are exactly suited to your requirements. Your satisfaction is our motivation.
3 reviews for Semi Automatic Linear Weigher Series Machine | VTOPS-JW
Bobby Pan –
Добрый день!
У вас есть в наличии:
Тензодатчик CB067-5K-S01 на 5 кг. Класс точности С3
Количество – 10 шт.
В какую стоимость?
Какие сроки отгрузки?
Спасибо!
Leon –
These linear weigher is really convenient and useful. It comes all stainless steel, and packed in wooden box. Unfortunately I did not receive the instruction manual. I contacted the salesperson and she emailed a PDF of the instructions, which was great, I didn’t have to worry about losing the paper instructions. The linear weigher is good for me, and very practical, it packs not only cereal but all kinds of beans with great precision. I order is a one weighing hopper, speed is not my first choice, because my business is not big. This one is fine and well worth the cost.
Mariadarm –
I’m really pleased with the linear weigher precision filler. It is easy to use and accurately measures the weight of many different items, down to 1 ounce increments. The measurements are displayed on a small but easy to read display screen. At the beginning, the vibration is very strong, and value changes quickly; when it is close to the target weight, the vibration changed to small, and the value was changes very little. The salesperson told me that this saves time in filling and get higher precision, seems to make sense. Interesting machine, still learning.
