Semi-Automatic Tabletop Sticker Round Bottle Labeling Machine / Label Applicator Supplier
Semi-automatic round bottle labeling machine suitable for all kinds labeling of cylindrical objects, small taper round bottles.Such as cosmetics round bottles, wine bottles and so on. It is available to achieve the labeling of a full circle and a half-circle of bottles.
The label applicator adopts a semi-automatic structure, needing only one operator. It uses the relative frequency converter to change speed; therefore, adjusting frequency will achieve different labeling speeds. In a specific range is adjustable for the labeling place and letter coding place (date coder).
Features:
- 1. CE Approved.
- 2. Suitable for labeling round bottle in different sizes.
- 3. Efficiency can reach 20-40 times per minute.
- 4. The position of the bottle is adjustable.
- 5. Labeling effect is perfect such as no creases and no bubble. Good label quality will increase product competitiveness.
- 6. Made of good brand sensor and electronic components, therefore performance is more stable.
Optional Device:
1. Circumferential location detection device. Labeling by positioning.
2. Printer (MT-50D included a ribbon coding machine). Print batch code and other information on the labels.
Photo Gallery of

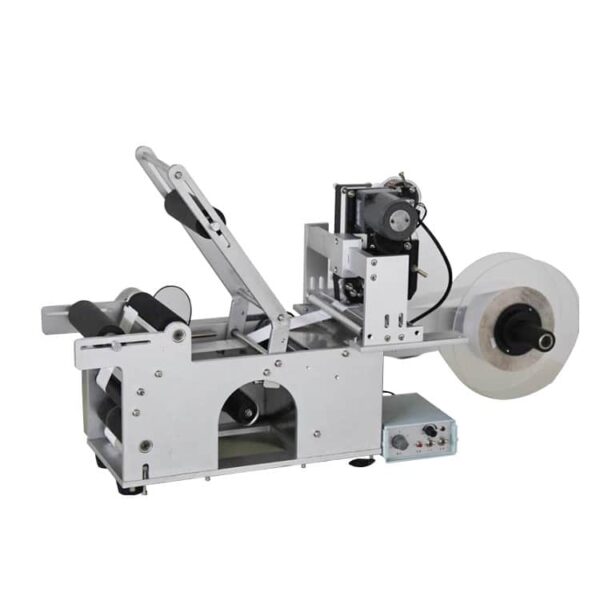

MT-50D Bottle Labeling Machine

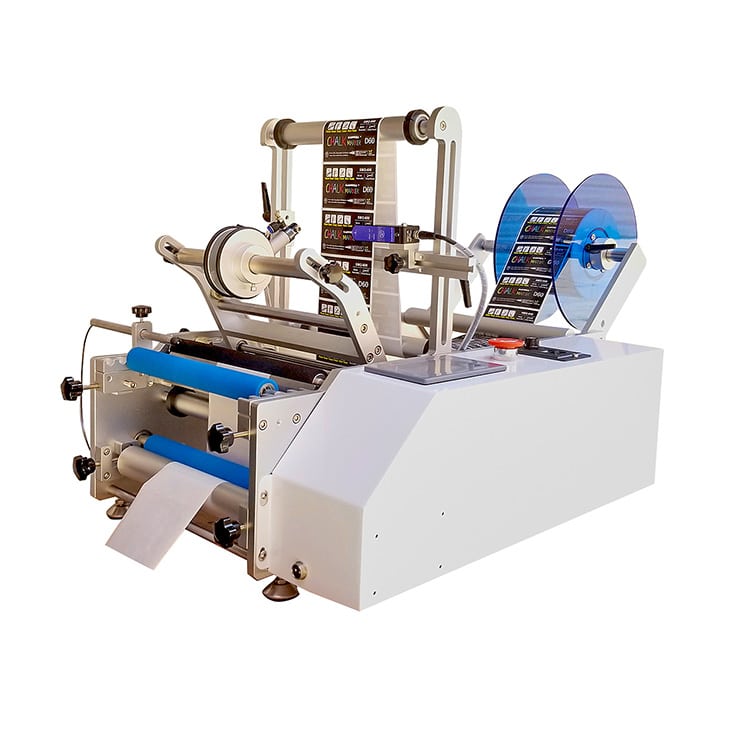

VTOPS-XL-T801 Bottle Labeling Machine (Pro)
Technical Parameters:
| Model | MT-50D | XL-T801 |
|---|---|---|
| Bottles of Diameter | 15-120 mm | 10-150 mm |
| Label Roll Outer Diameter | 275 mm | 275 mm |
| Label Roll Inner Diameter | 75 mm | 75 mm |
| Width of Label | 26-150mm | 20-230mm |
| Length of Label | 25-240 mm | 20-300 mm |
| Labeling Speed | 20-40 pcs/min | 15-40 pcs/min |
| Labeled Error | ±0.5 mm | ±0.5 mm |
| Ribbon Coder | Optional | Included |
| Compressed Air | No Need | 0.3-0.4 Mpa |
| Voltage | AC Single-Phase 220V [2] | AC Single-Phase 220V [2] |
| Machine Weight | 25 kg | 35 kg |
| Gross Weight | 35 kg | 50 kg |
| Manufacturer | Vtops Machinery | Vtops Machinery |
Related Knowledges
[1]: Both MT-50 and MT-50D are Chinese model. But MT-50D included a ribbon coding machine.
[2]: AC single-phase 110V voltage is optional.
Working Video
Downloads
Please download the latest operation manual and CE of Semi-Automatic Bottle Labeling Machine via the following links:

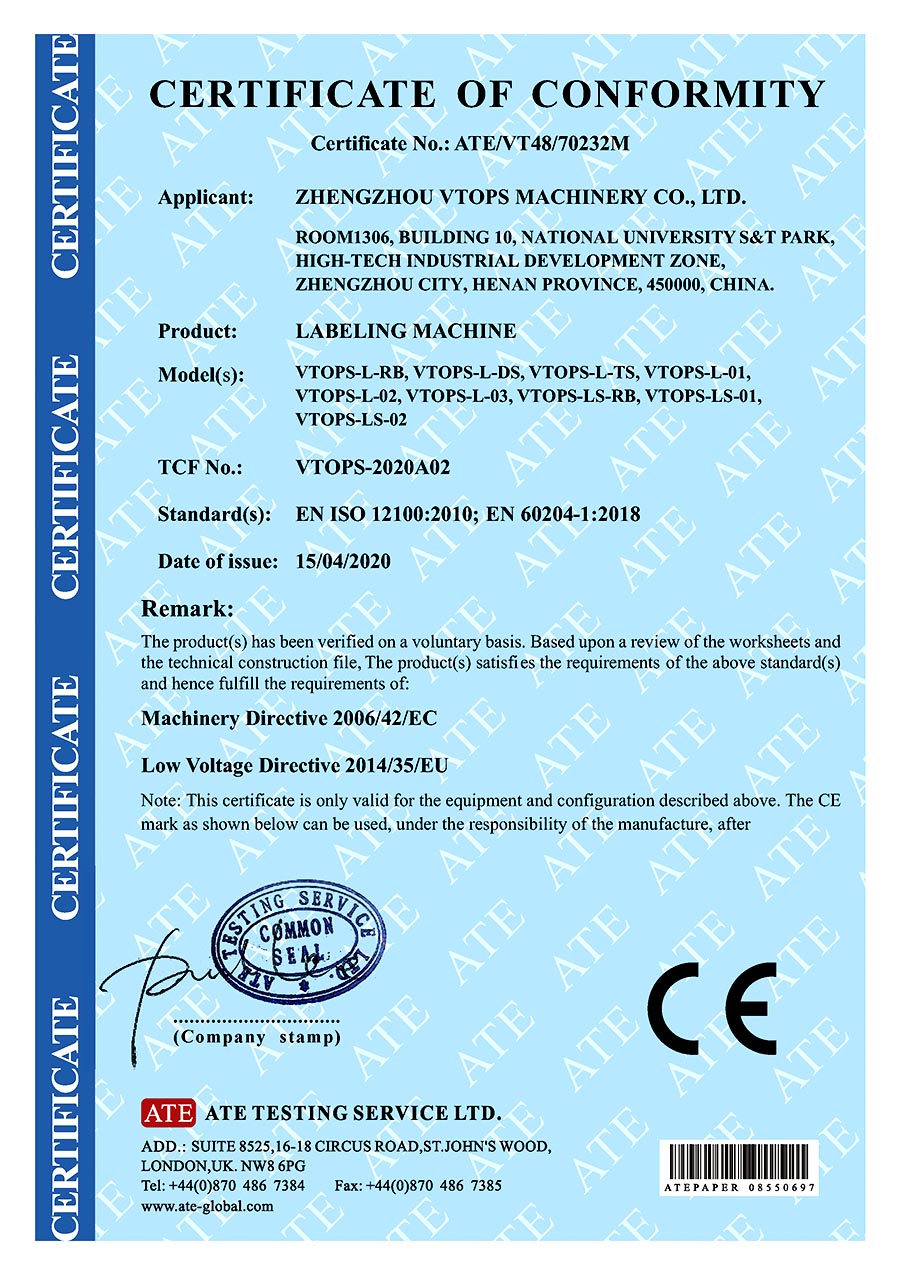

1. CE Certificate CE of Labeling Machines
2. Operation Manual of VTOPS-MT-50 Series
3. Operation Manual of VTOPS-XL-T801 Labeling Machine
Related products
Reviews
Semi-Automatic Tabletop Sticker Round Bottle Labeling Machine Supplier
Follow Us
3 reviews for Semi-Automatic Tabletop Sticker Round Bottle Labeling Machine Supplier
E. Diaz –
Excellent product. It met me by air freight, was fixed and packed in a strong wooden box, and worked as expected when it arrived.???
Dinesh pathak –
I need MT -50D on urgent basis
Marshall Holzer –
After a few minutes of setup, I was labeling my jars without a hitch. The included instructions left a bit to be desired, but it was easy enough to figure out the assembly, alignment, and positioning. The machine is well-built and very solid.
I was concerned that the weight of a 32-ounce HDPE wide-mouth jar wouldn’t be sufficient for the label to adhere properly, but with proper roller setup to position it correctly, it’s just fine.
