Power Source: 🔌 Electric Drive
Dosing Weight: From 5 g
to 2500 g
Filling Driven: Servo Motor
Voltage (Standard): Three-phase 380V
Voltage (Optional): Three-phase 480V
Contact Materials: 304 Stainless Steel, Optional 316 Stainless Steel
Description
Single Head Automatic Auger Filler Powder Bottle Filling Machine
Automatic auger filler machine of model VTOPS-PSH-02 is a rotary type automatic auger filler [1]. It is a new style automatic powder bottle auger filler machine which developed by Zhengzhou Vtops Machinery Co., Ltd. The single head automatic auger filler using rotary indexing Star-Wheel.
1st. Features:
- 1. Positioning by Star-Wheel. Therefore, the machine with a higher positioning accuracy.
- 2. LCD touch screen with Chinese and English versions. PLC control system. Easy and simple operation.
- 3. Apply to all of can-shaped or bottle-shaped containers, such as: glass bottle, plastic jars, metal tin cans, etc.
- 4. Skip filling when there are no containers or lack containers.
- 5. The storage hopper is split-hopper. So, it is easy to clean, and easy easy to change auger screw tube.
- 6. In addition, the filling motor is servo motor.

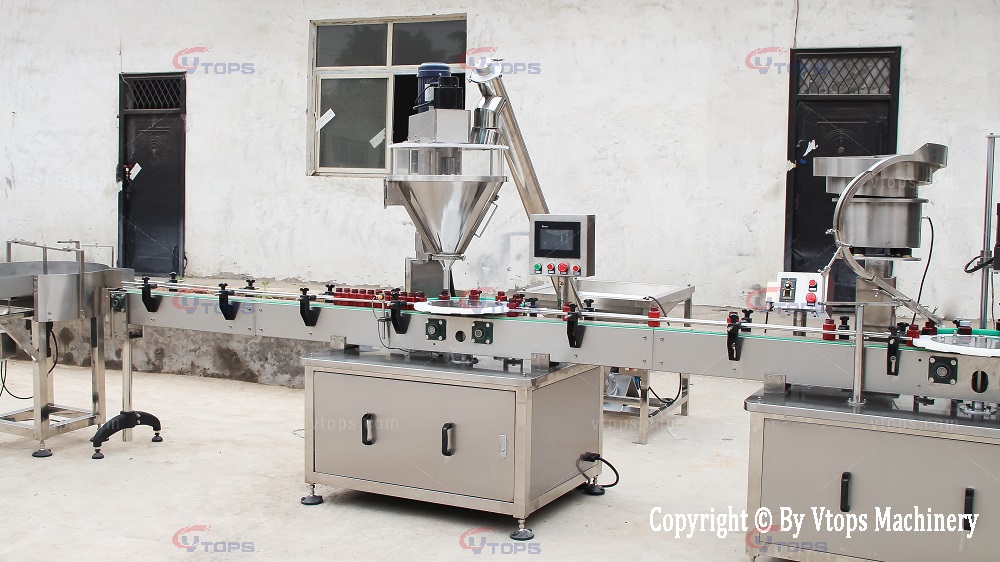

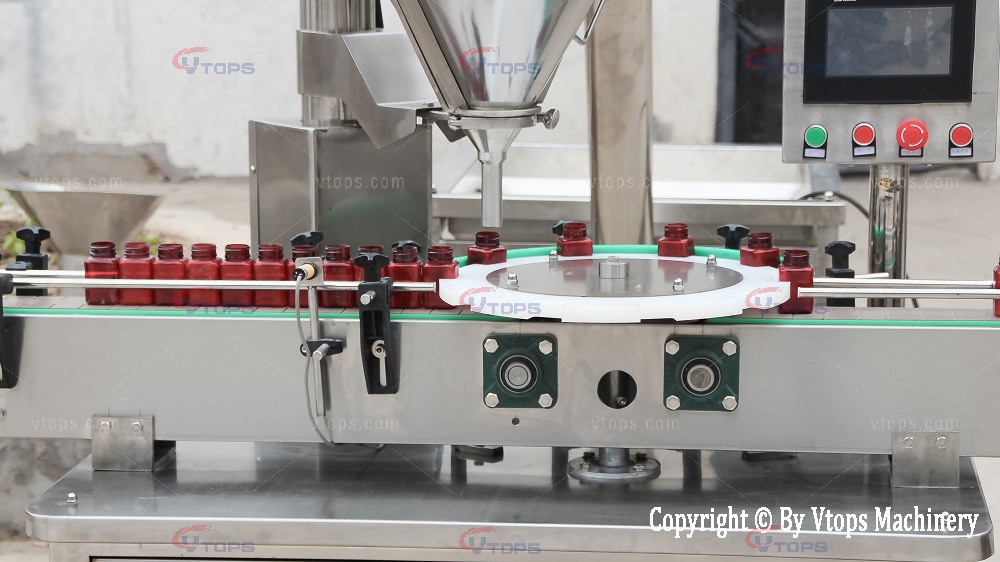

2nd. Detailed Photos:
3rd. Technical Parameters:
- Metering Range: 5 grams – 2500 grams
- Filled Error: ≤ ±1%
- Measurement Method: Auger Filler
- Filling Speed: 0-60 fills/min
- Filling Motor: Servo Motor [2]
- Auger Height Adjustable: Yes [2]
- Monitorable Hopper: Yes [2]
- Easy Clean Hopper: Yes [2]
- Hopper Volume: 50 Liters
- Machine Weight: 550 kg
- Power: AC Three-Phase 380V 50/60HZ 2.5KW
- Dimension: 2000*1000*2100mm
- Manufacturer: Zhengzhou Vtops Machinery Co., Ltd.
