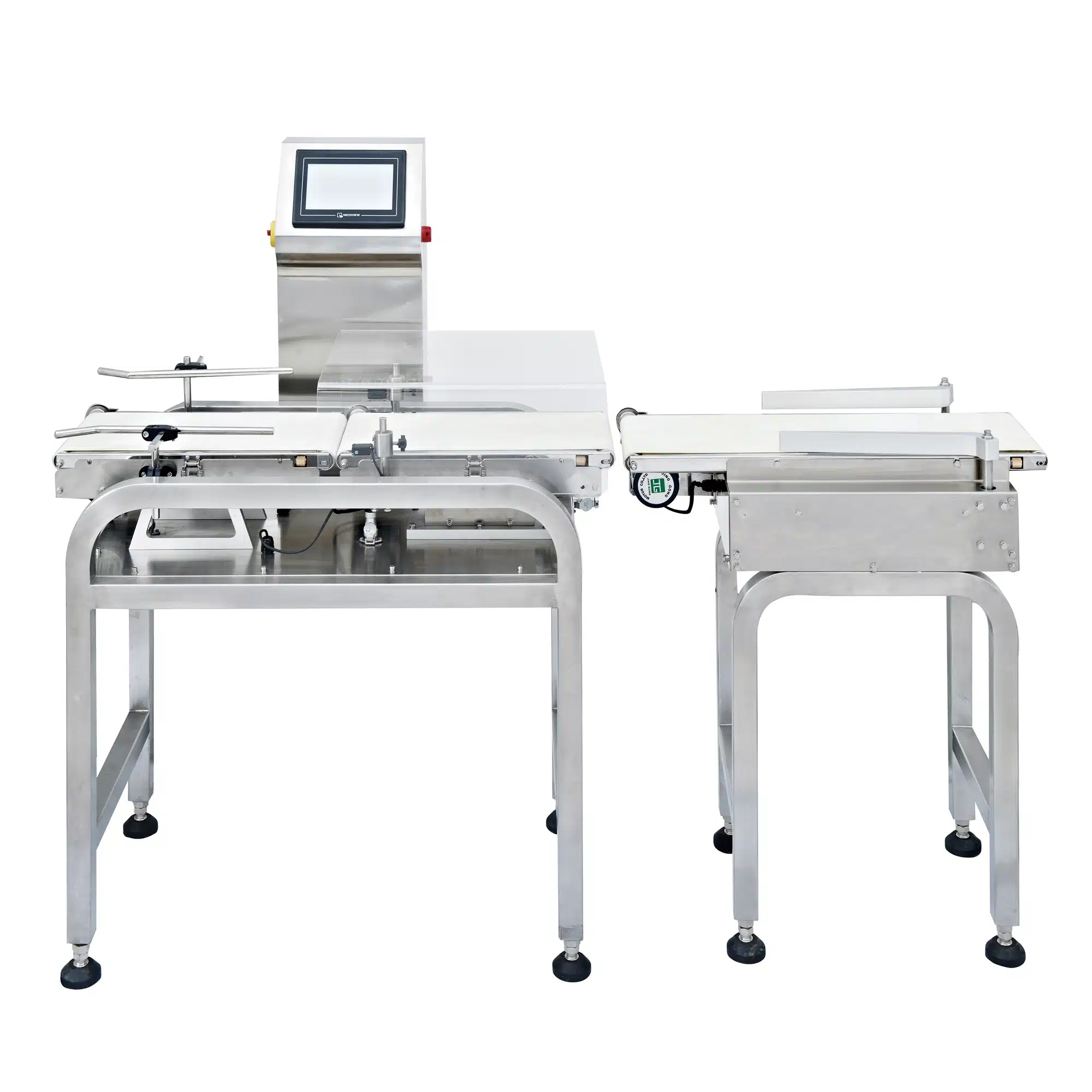

Easy to Operate High Precision Inline Automatic Checkweigher Machine (Check Weight Up to 6Kg)
A checkweigher machine is an automated machine used in the packaging and food industries to check the weight of products as they move along a production line.
The weighing weight 10-6000 grams check weigher machines from VTOPS are available in 4 different models: VTOPS-CW1K, VTOPS-CW2K, VTOPS-CW3K, and VTOPS-CW6K. The smaller the range, the higher the accuracy.
Features
- 1. Intelligent construction, auto program setting for easy operation.
- 2. Production records in details.
- 3. Quick Release design.
- 4. PLC control system with industry touch screen panel.
Technical Parameters
| Model | VTOPS-CW200 | VTOPS-CW1K | VTOPS-CW2K | VTOPS-CW3K | VTOPS-CW6K | VTOPS-CW30K |
|---|---|---|---|---|---|---|
| Weighing Range | 5-200g | 10-1000g | 10-2000g | 10-3000g | 10-6000g | 5Kg-30Kg |
| Accuracy | XIII(1) | |||||
| Max. Belt Speed | 80m/min | 52m/min | 40m/min | 35m/min | ||
| Max. Speed | 150PCS | 80PCS | 80PCS | 50PCS | 40PCS | 30PCS |
| Belt Size | L45xW10cm | L45xW22cm | L45xW30cm | L65xW40cm | L65xW44cm | L86xW50cm |
| HMIHuman Machine Interface | 7" Touch Screen | |||||
| Reject Method | Air blowing | Air blowing/Air-reject/Pneumatic pusher/Slide type | Pneumatic pusher/Slide type | Pneumatic pusher | ||
| Voltage | AC Single-phase 220V 50/60Hz | |||||
| Power | 400W | 600W | ||||
| Dimensions | 145x60x130cm | 98x80x130cm | 98x86x130cm | 160x95x150cm | 160x95x150cm | 165x115x140cm |
| Weight | 100Kg | 180Kg | 190Kg | 260Kg | 260Kg | 260Kg | * The above are the model parameters of some checkweigher machines. |
Layout Drawing
